The Perfect Builder
3D CONCRETE PRINTER
PACKAGE
Contour3D's state-of-the-art printer package, including Opus (3D Printer), Titan (Mobile Batching Plant) and C3D Control System and Software.
3D CONCRETE PRINTER
3D CONCRETE PRINTER PACKAGE
Australian-designed, engineered & manufactured, our 3D printer package includes OPUS (3D Printer), TITAN (mobile batching plant) and Control System and Software. Our 3D concrete printer, Opus, provides world-leading results with every print, delivering millimetre precision with each layer with self-correction capabilities and monitoring.
Package includes:
- OPUS: 3D Concrete Printer
- TITAN: Batching Plant
- Control System and Software
- Contourcrete and material consultancy
Australian made & designed
Latest technology
& material science
World-leading
print quality
40%
recycled materials
Specifications
Sectors
- Government
- Housing
- Commercial
- Modular Construction
- Civil
- Factory Printed Components
- Bespoke digital design
- Council / Civic
Specifications
OPUS (3D Concrete Printer)
- 30m length x 12.5m standard width (up to 15m with additional components) x 3.9m (height)
- Expandable up to 15m in width and 40m in length with additional components.
- Capable of movements up to 5m per second
- Lightweight and modular for fast mobilisation (no cranes required)
- Easy assembly, plug and play
- Remote Operation via Tablet
- HD camera for quality assrance, record keeping and remote monitoring
- Weather Station: Solar-powered Wi-Fi with feedback to control the system.
- Raising & lowering the main cross-axis is achieved without heavy machinery via integrated rams, thus enabling ground-level assembly and rapid setup.
TITAN (Mobile Batching Plant)
- Hyper accurate and designed specifically for 3D concrete printing
- Self adjustments based on operator inputs, sensor data and weather conditions
- 4x bulk materials + 2x liquid additives
- Measurements: 5300mm L x 2300mm W x 2400mm H
- Easily transported & quick set up
- One person operation
- Robust and weatherproof
- Automatic hydration content measurement and adjustment to maintain absolute consistency
- Complete integration with our OPUS printer
- Camera feed and sensor data capture for quality control and compliance
3D CONCRETE PRINTER

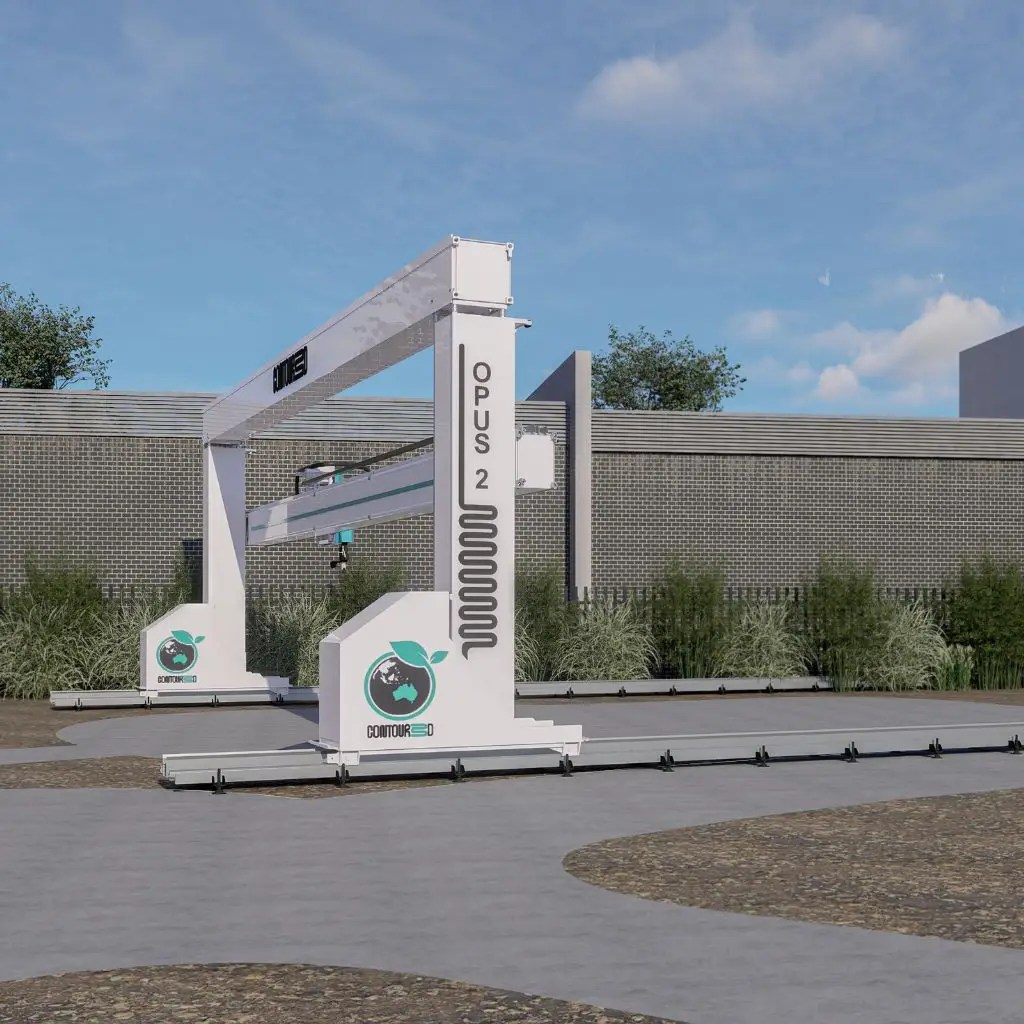

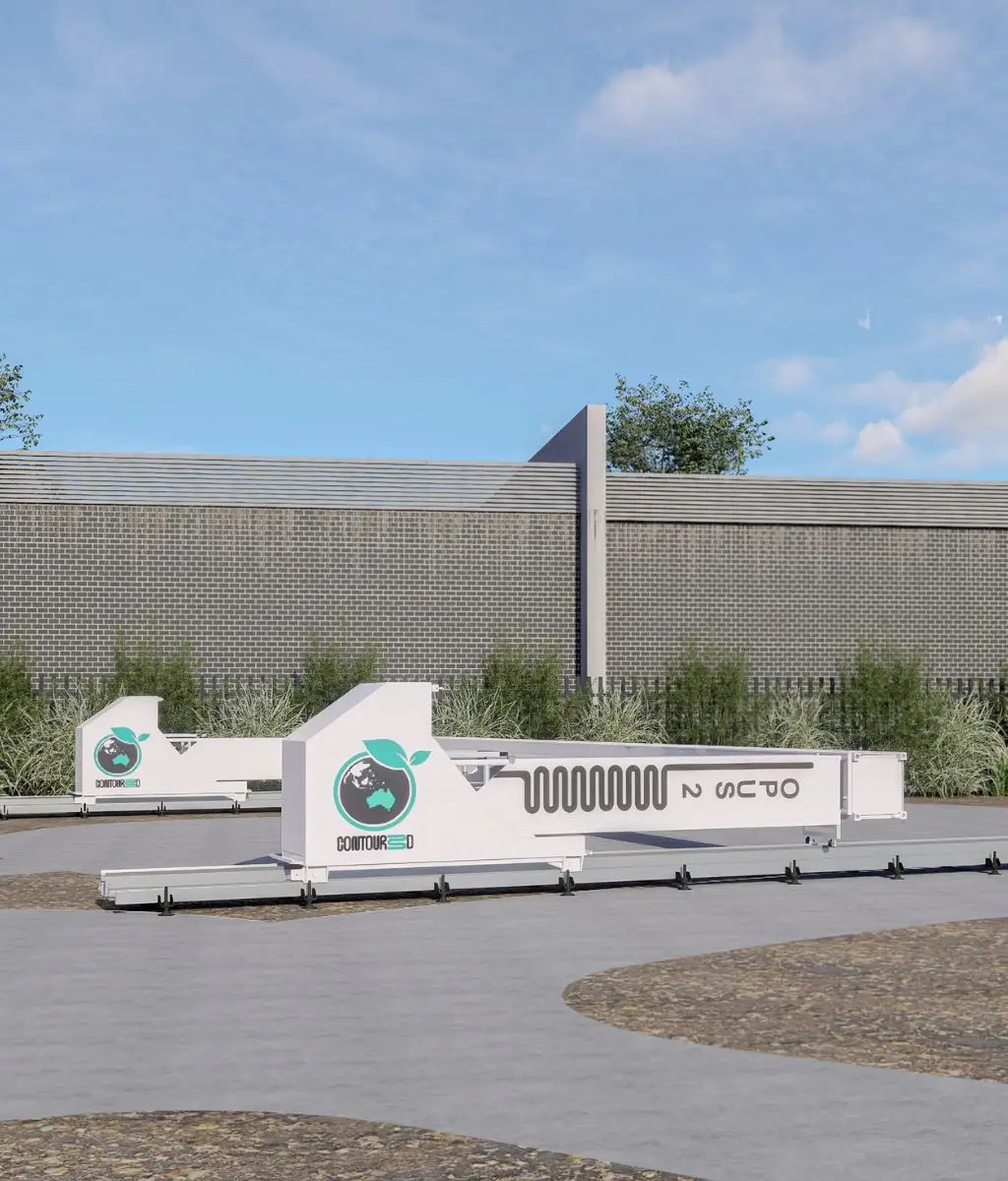

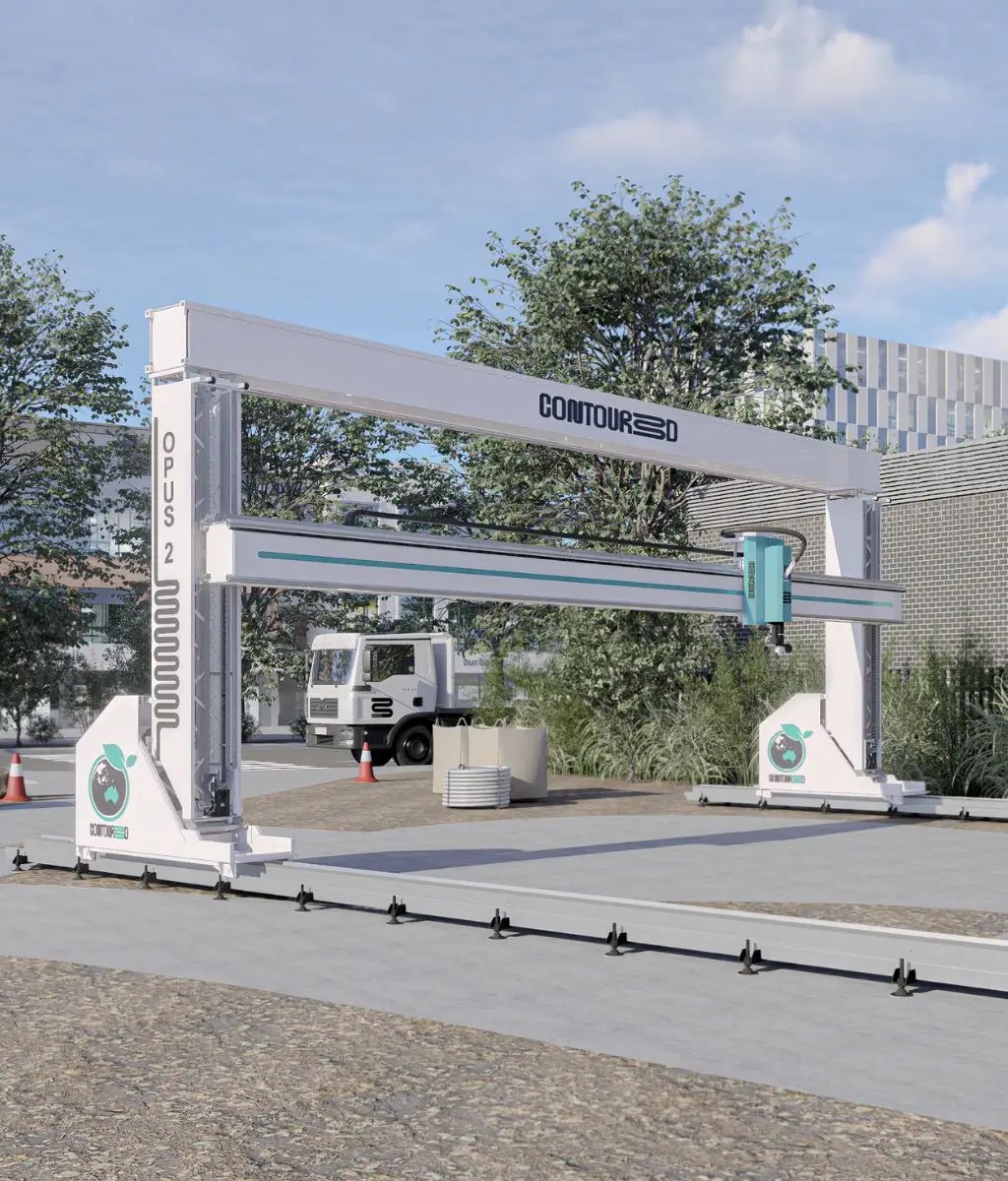

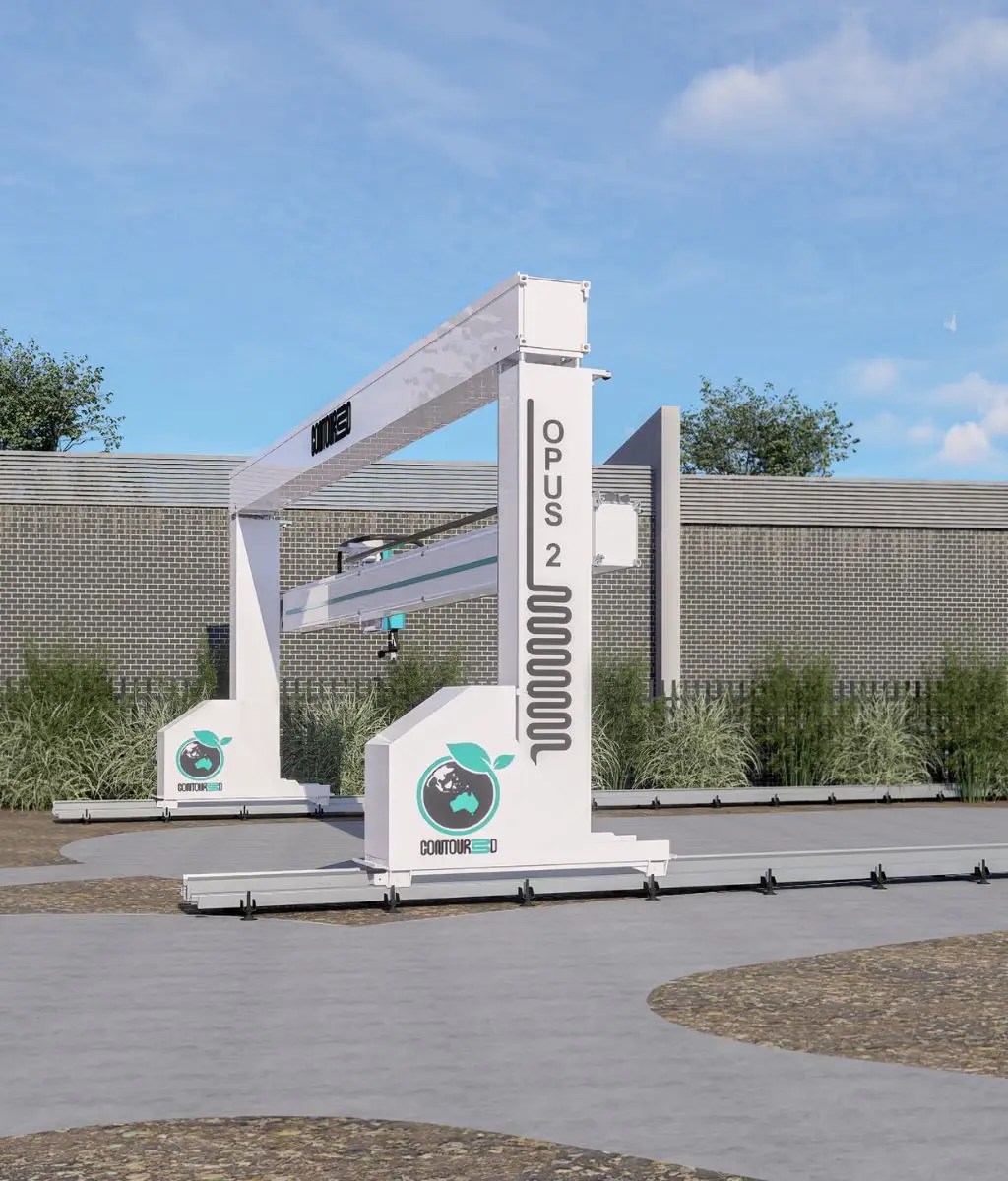

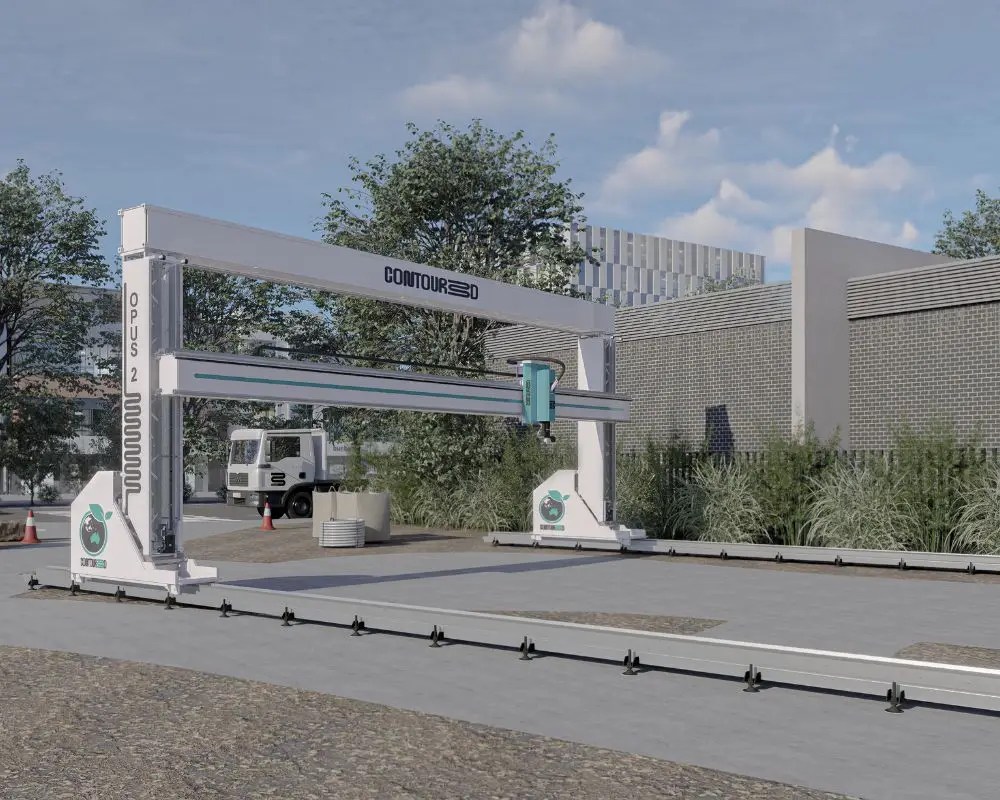

OPUS
Australian-designed, engineered & manufactured, Opus provides world-leading 3D construction printing solutions. Constructed through a dynamic mobile gantry system, Opus provides world-class precision and accuracy throughout every build, with the capacity to construct housing and other applications more efficiently by allowing the user to have full control of the job.
OPUS SPECIFICATIONS
- 30m length x 12.5m standard width (up to 15m with additional components) x 3.9m (height)
- Expandable up to 15m in width and 40m in length with additional components.
- Capable of movements up to 5m per second
- Lightweight and modular for fast mobilisation (no cranes required)
- Easy assembly, plug and play
- Remote Operation via Tablet
- HD camera for quality assrance, record keeping and remote monitoring
- Weather Station: Solar-powered Wi-Fi with feedback to control the system.

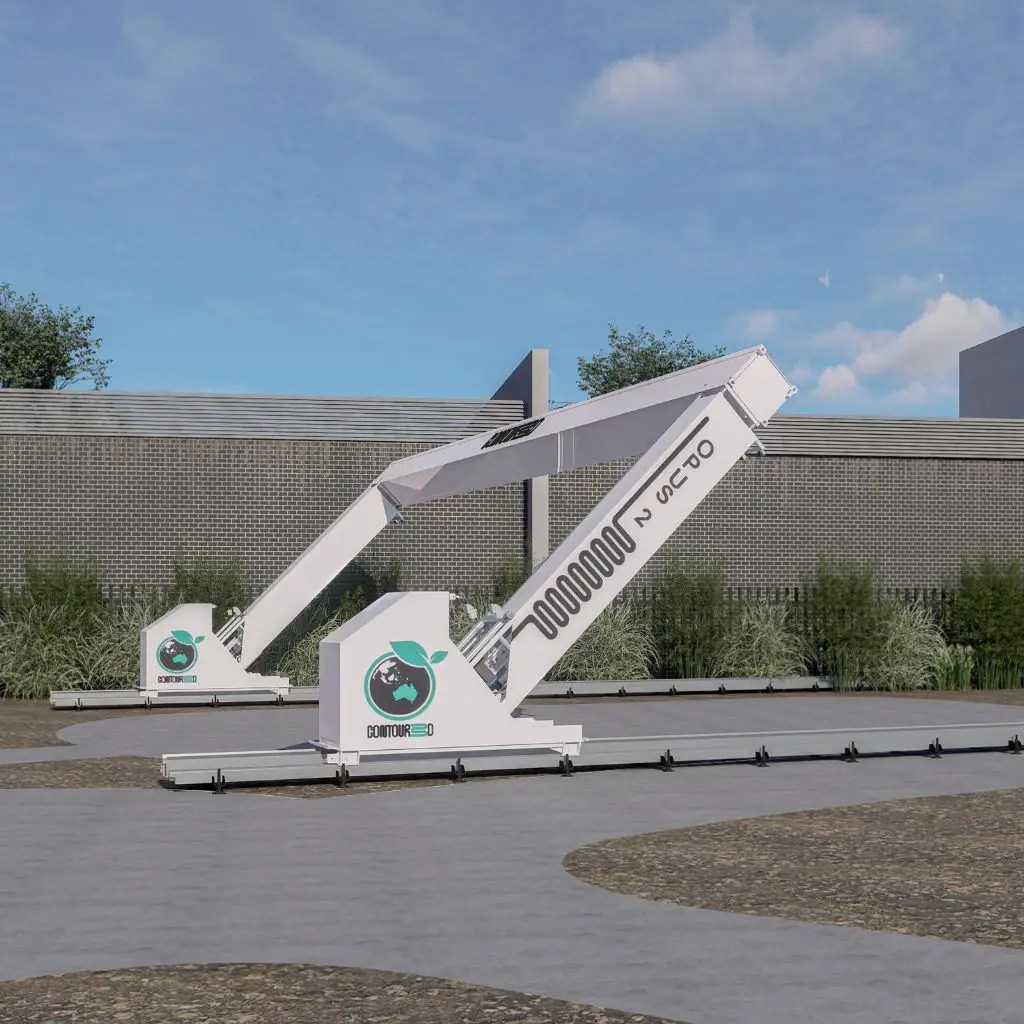

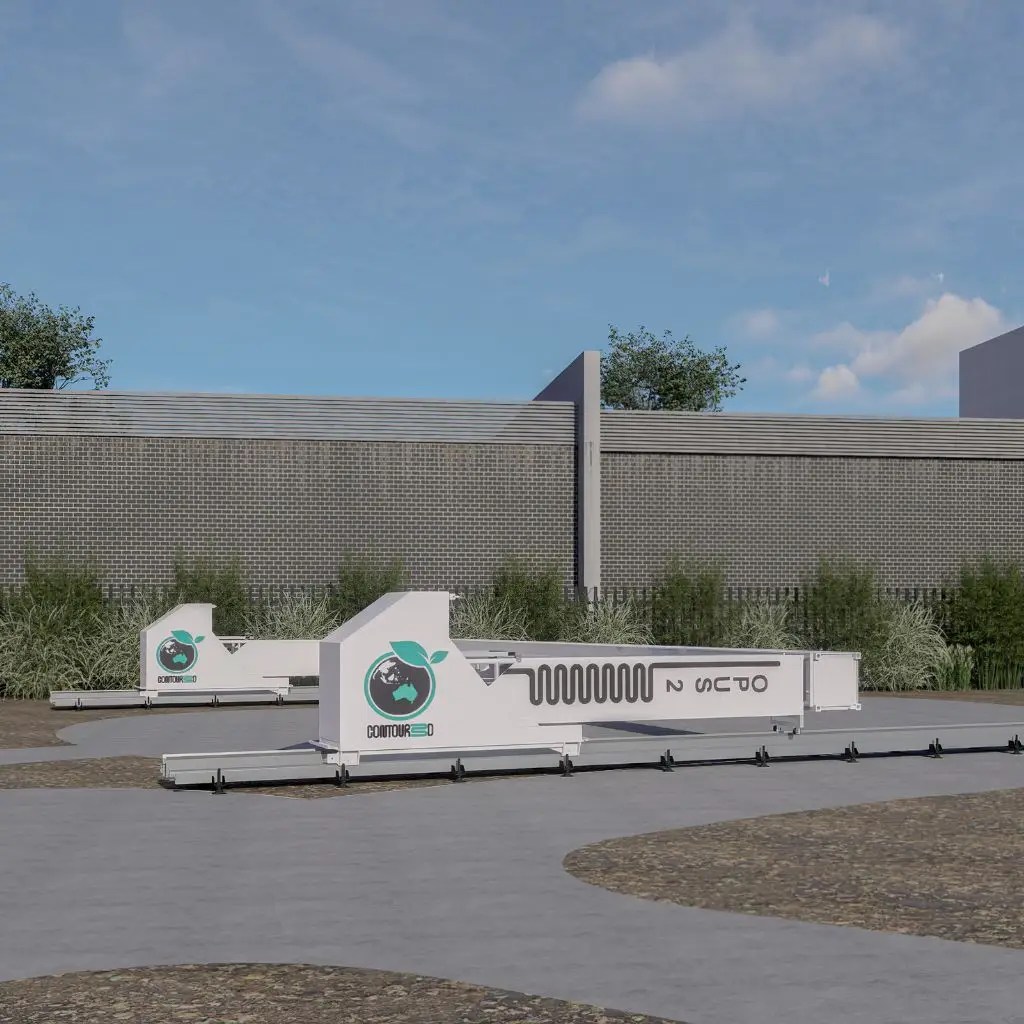

- Raising & lowering the main cross-axis is achieved without heavy machinery via integrated rams, thus enabling ground-level assembly and rapid setup.

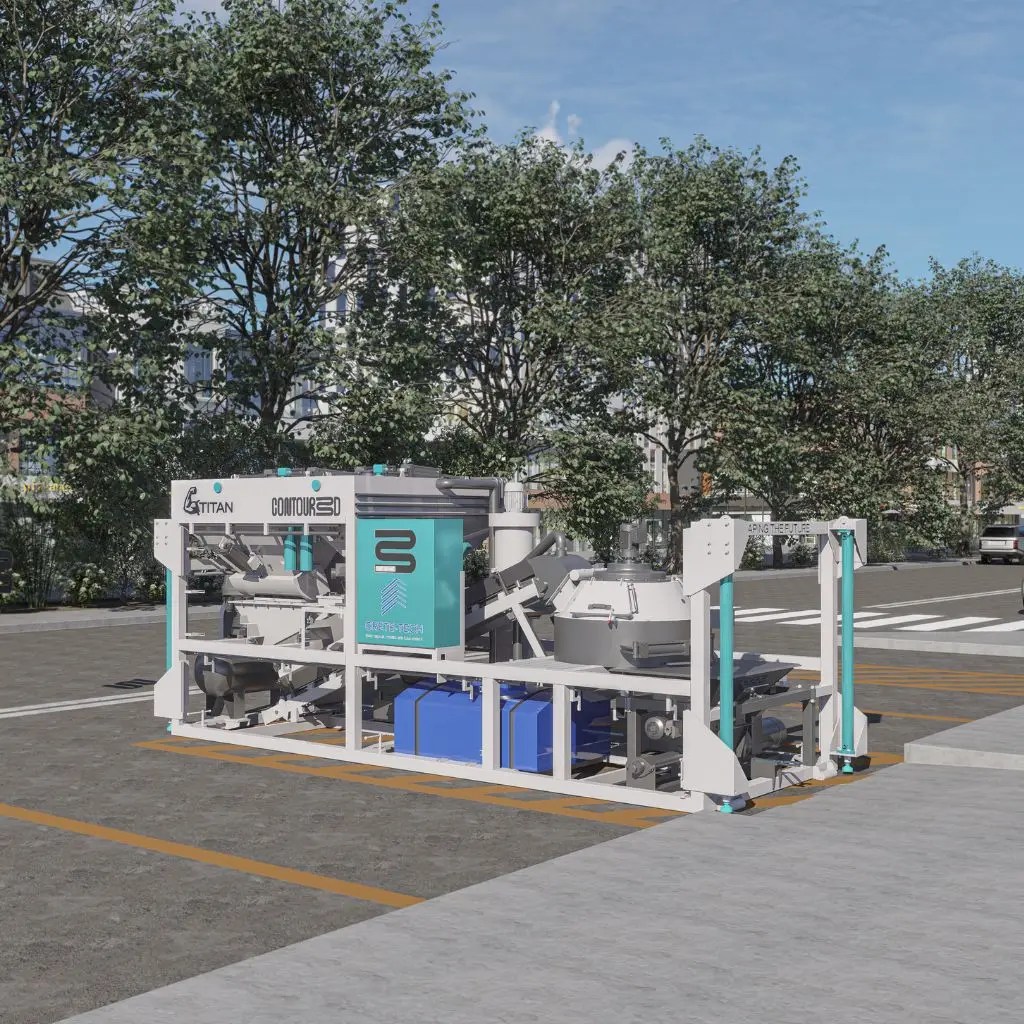

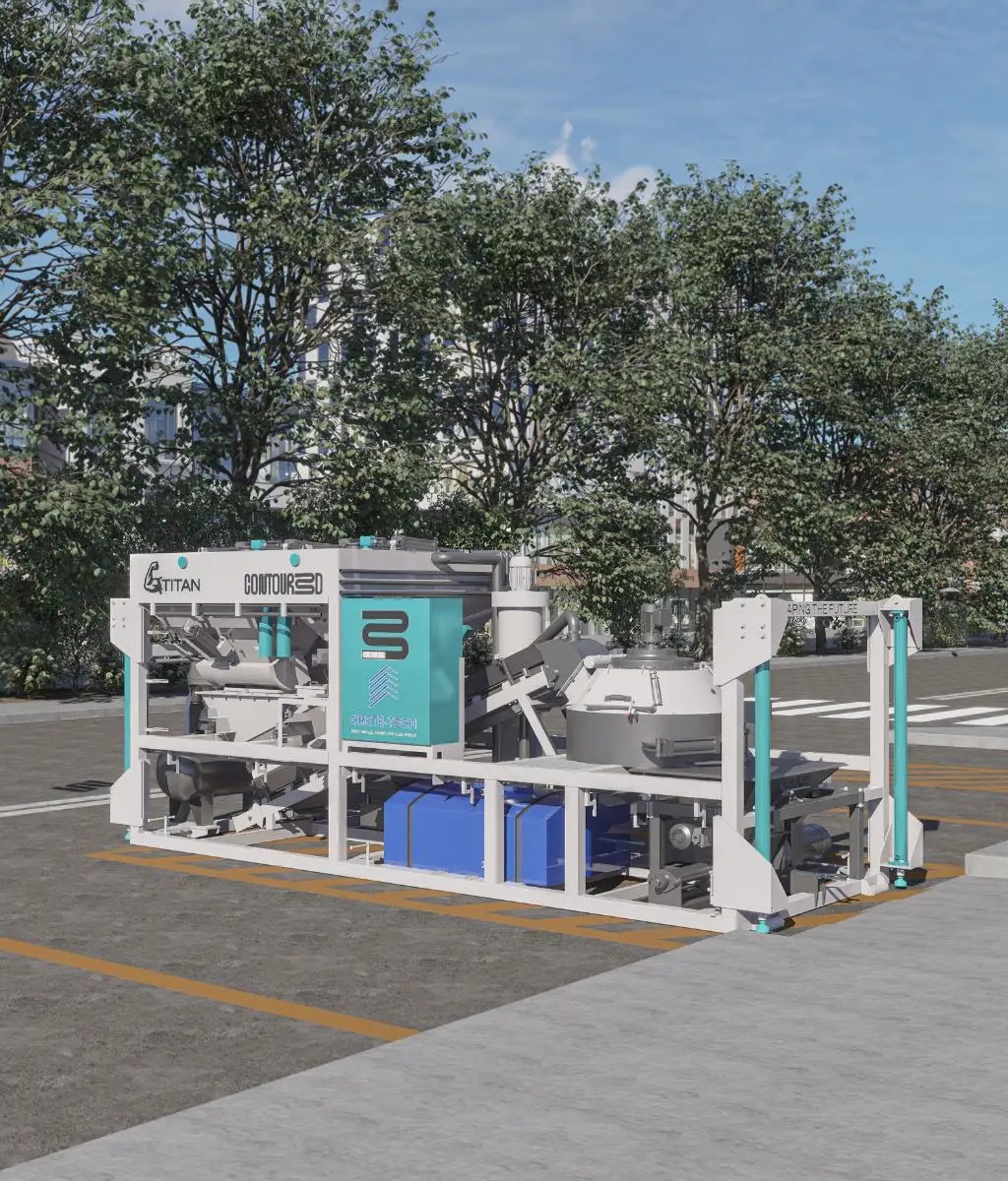

MOBILE BATCHING PLANT
TITAN
Contour3D has designed a groundbreaking system, the first of its kind in the world focused purely on 3D printing with the precision and control necessary for smooth, consistent prints. This innovation significantly reduces raw material costs by up to ~40% compared to pre- blended dry materials.
TITAN SPECIFICATIONS
- Hyper accurate and designed specifically for 3D concrete printing
- Self adjustments based on operator inputs, sensor data and weather conditions
- 4x bulk materials + 2x liquid additives
- Measurements: 5300mm L x 2300mm W x 2400mm H
Easily transported & quick set up - One person operation
- Robust and weatherproof
- Automatic hydration content measurement and adjustment to maintain absolute consistency
- Complete integration with our OPUS printer
- Camera feed and sensor data capture for quality control and compliance
AUSTRALIAN DEVELOPED

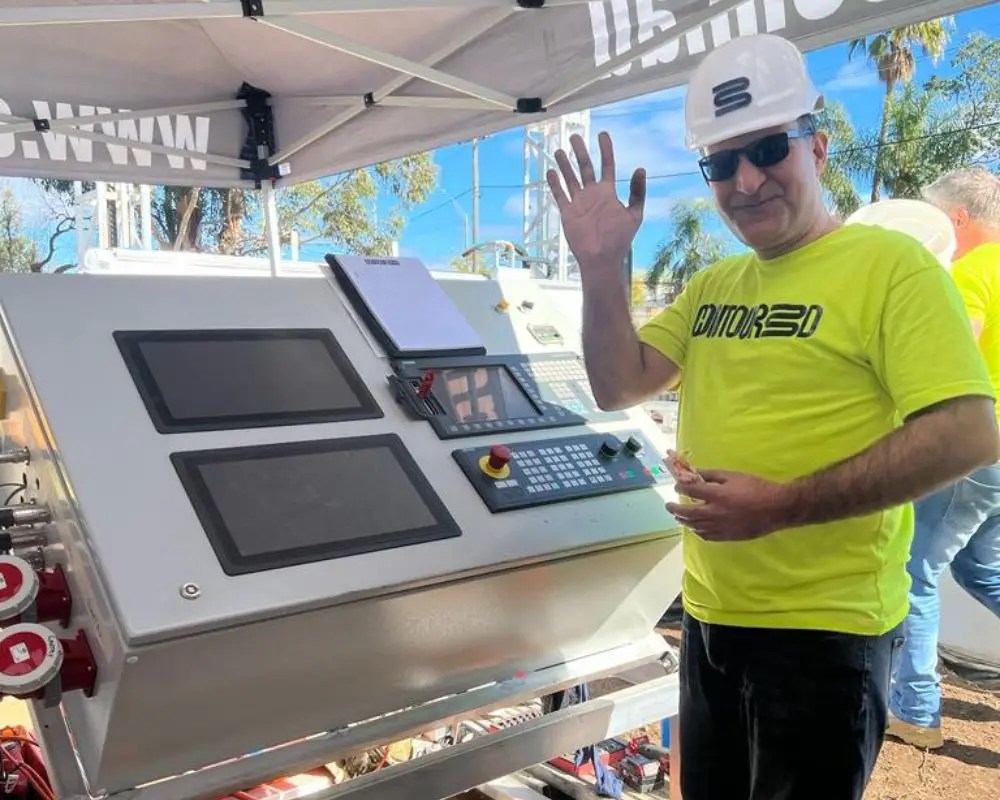

C3d Control System and Software
C3d Control System and Software SPECIFICATIONS
- Contour Control Gen 2
- Realtime data and adjustments
- Remote support capable
- 1 x tablet for remote operation
- 2 x 24” monitors
- 1 x OPUS 2 pre-configured laptop
- HD cameras are fully integrated and remote access enabled 4/5G wireless technology (does not include SIM)
- Monitor your print v’s a digital representation
- Dry run simulations
- Active layer tracking and adjustment
- 3D scanning of the site prior to printing and subsequent printer compensation to remove any slab abnormalities.
WALK THROUGH ANY PROJECT
VR TECHNOLOGY
Take a tour of your project before it’s built from the comfort of your own home.
WALK THROUGH GENESIS, OUR 3D PRINTED DUPLEX
WALK THROUGH OUR DUPLEX USING VR TECHNOLOGY
THANKS FOR YOUR INTEREST
CONTACT US
Thanks for you interest in our 3D printers and technology. If you have a project coming up or need further assistance, simply contact via the below link and our sales team will get back to you as soon as possible.
